Look for the cabin dimensions that most closely match your steam room’s measurements to find the recommended generator size.
| *Cabin Dimensions | Cubic Feet | Generator |
|---|---|---|
| 3x3x7 | 63 | 4kw or 6kw |
| 3x4x7 | 84 | 7kw or 9kw |
| 3x5x7 | 105 | 9kw or 10.5kw |
| 3x6x7 | 126 | 9kw or 10.5kw |
| 3x7x7 | 147 | 10.5kw or 12kw |
| 3x8x7 | 168 | 12kw |
| 4x4x7 | 112 | 9kw |
| 4x5x7 | 140 | 9kw or 10.5kw |
| 4x6x7 | 168 | 10.5kw or 12kw |
| 4x7x7 | 196 | 12kw |
| 4x8x7 | 224 | 12kw |
| 4x9x7 | 252 | 12kw |
| 5x5x7 | 175 | 12kw |
| 5x6x7 | 210 | 12kw |
| 5x7x7 | 245 | 12kw |
| 5x8x7 | 280 | 12kw |
| 5x9x7 | 315 | 12kw |
*Cabin dimensions are based on WxLxH
NOTE: It’s safe and even recommended to use a generator size, 1-step higher than what the chart indicates.
| Model | kW | Amps | Volts | Phase | Wire Size |
|---|---|---|---|---|---|
| 450 | 4.5 | 19 | 240 | 1 | 12AWG |
| 600 | 6 | 25 | 240 | 1 | 10AWG |
| 750 | 7.5 | 32 | 240 | 1 | 8AWG |
| 900 | 9 | 38 | 240 | 1 | 8AWG |
| 1050 | 10.5 | 44 | 240 | 1 | 6AWG |
| 1200 | 12 | 50 | 240 | 1 | 6AWG |
Chromatherapy Sauna Lighting System
Shipping calculated at checkout.
Adding product to your cart

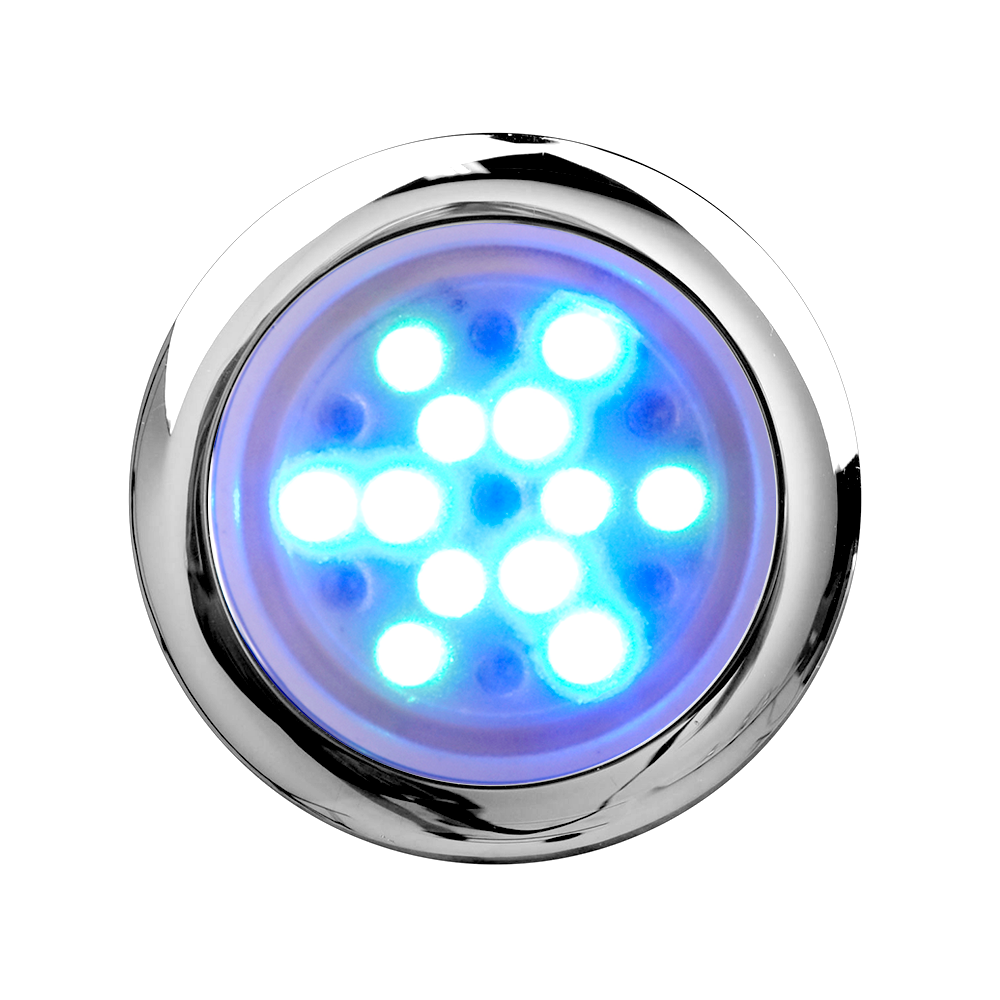

SteamSpa Chromatherapy Lighting System
- Includes a 30 ft. Cable
- Polished Chrome finish
- Chromatherapy three color mode LED light will create a soothing, therapeutic environment in bath and shower rooms
- Easy Installation
- Ships from manufacturer within 24 hours
